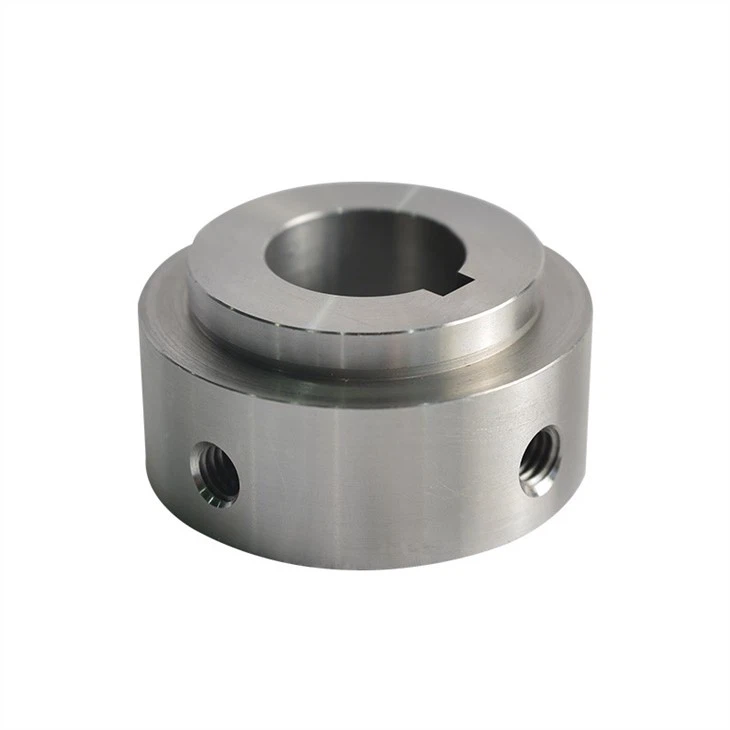

CNC Steel Components

Tight tolerance: The hole is 30mm+0.6mm/-0. Keyway:+0.05mm/-0. QC control: SC size:100% Go & No-go guage test, ratio CMM test Production: First and last piece inspection, random test, 100% test by operator

Product NameCNC steel components
Material
C1020
Tolerance

The hole: 30mm+0.6mm/-0.

 Keyway:+0.05mm/-0.

ProcessCNC Turning, milling, cutting, drilling and tapping
Surface
yellow zinc plating 8-12μm
Test100% Go & No-go guage test, ratio CMM test
Weight
0.45kg
UsageMachinery parts
Delivery time15 days
CertificationISO9001:2015, IATF16949


The tight tolerance CNC steel components is used for the main shaft assembling. It is the important parts for the machine. To keep the quality, the experienced engineer worked out a effective process program to make sure the quality. The QC people is the one to make sure all parts are qualified before shipping. Ratio parts will be checked by CMM. For the batch production, it is important to do the Go & No-go guage to make the inspection more effective.


There will be always some burrs when the part have the inner and thread on the side wall.

The it will be very important to clean the burrs after times thread going.

52

55


Qingdao Surely Machinery is the CNC machining factory. We can offer OEM aluminum, steel and brass CNC turning, CNC milling, drilling and tapping service. Just give us your drawing or sample, we can give you a competitive price and qulity parts.
